Telescopic gangways and towers gangways FROM THE MANUFACTURER!

Manufacturing, consulting, selection, supply and technical support.

Telescopic gangways and towers gangways FROM THE MANUFACTURER!

Manufacturing, consulting, selection, supply and technical support.

Telescopic gangways and towers gangways FROM THE MANUFACTURER!

Manufacturing, consulting, selection, supply and technical support.

HK Marline Trading Ltd. offers for delivery
Telescopic gangways and towers gangways (release of 200 pieces per year):

HK Marline Trading Ltd. offers for delivery
Telescopic gangways and towers gangways (release of 200 pieces per year):

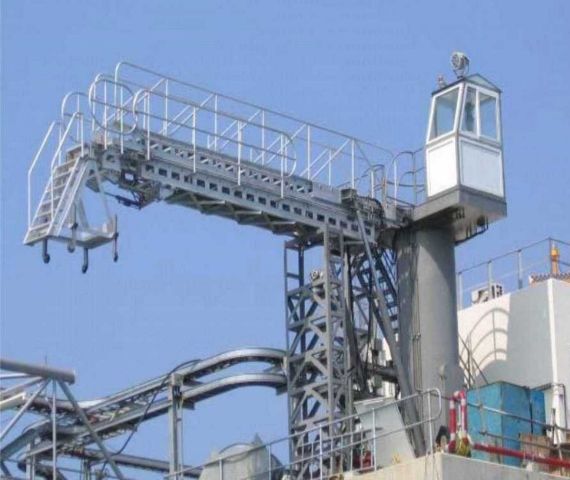

Telescopic Gangway (Column Type):

Column Type gangway is comprised of main ladder, front ladder, triangle ladder, slewing platform, pulling system and column.

The telescopic cylinder drives the front ladder and the
hydraulic cylinder drives the main ladder.

The slewing cylinder drives the whole ladder for slewing movement. The slewing cylinder could be floating without counterweight after connection with ship. The column gangway is suitable for dock with capacity ≤ 80,000.

Description (Tower Type):

Tower Gangway is comprised of support frame, ladder, slewing column, lifting platform, tower
frame, tower platform, stairway, handrail, lifting mechanism, cable lifting mechanism, slewing
mechanism, ladder counterweight, electric-hydraulic control system.

The cylinder or traction system drives the ladder for luffing. The cylinder drives the platform for
horizontal slewing. The slewing platform and ladder has counterweight, and the speed reducer controls the platform up & down through pulley block.
suitable for 20,000-300,000 ton jetty.

Main functions:

  • The hydraulic system is weatherproof and easy to maintain.
    A four-link mechanism keeps the steps horizontal when the ladder angle changes from -40 ° to 60 °
  • Hydraulic control of the system of movement and rotation, rotation of 180 degrees.
  • Wireless control makes work even more convenient.
  • The control panel of the electronic control system is located on the lower platform for intuitive and convenient operation. With its help, the main and frontal ladders are controlled, the triangular staircase is adjusted, the platform is raised and rotated.
  • The triangular and frontal ladders are connected so that the field wheel under the triangular ladder is in constant contact with the deck of the vessel, regardless of pitching and roughness of the deck.
  • Strong locking mechanism of the lifting device.
  • It is possible to install a jib crane on the top of the ladder.

Telescopic Gangway Parameters:

Operating Panel:

The gangway could be operated by the site panel, platform panel and remote controller during the operator/ passenger move to different places.
It can drive the ladder lifting, telescoping, luffing and slewing for the different purpose.

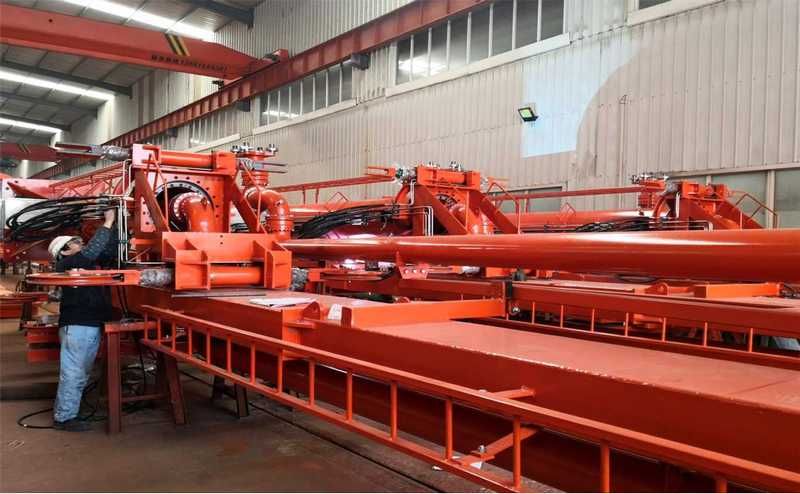

Locate at Shanghai, China. 13.3 hectare factory
80,000 m² workshop
28 engineers, 150 employees

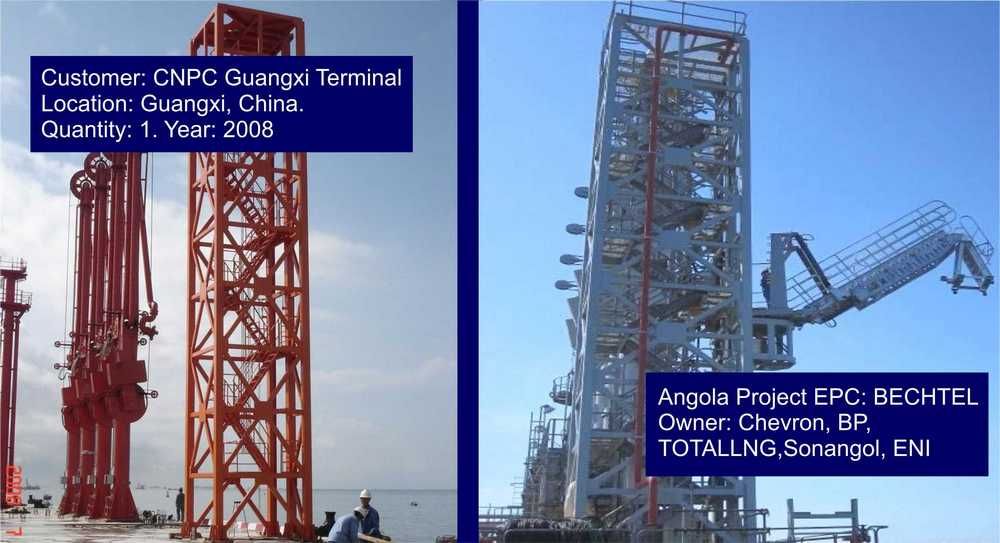

OUR COMPLETED WORKS:

We have 20 years of experience in manufacturing:

Sea standers (release of 200 pieces per year); Transshipment sleeves for automobile and railway tanks (production of 700 units per year); ATS (emergency disconnection systems PMAR);

Hinges for transshipment sleeves; Manual and hydraulic couplings QC / DC; Telescopic gangways and gangways (towers 25 units per year);

Quick-release hooks (release of 700 pieces per year); Cranes with a rotary arrow (release of 700 pieces a year); Laser mooring, docking and monitoring systems (release of 20 units per year).

For normal operation, the berths should be equipped with a whole range of auxiliary devices.

To protect berths and hull of the ship from damage during approach and parking of vessels at the berths, so-called bouncing devices, and devices that allow to fix ships at the berths and limit their movement under the influence of wind and currents, so-called mooring devices.

The factory's breakers are exported to more than 50 countries and regions: USA, Europe, Middle East, South America, Africa, Japan, etc.
